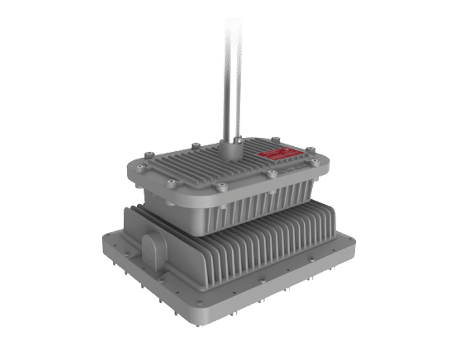

Castex-4

Hazardous Location

The hazardous, marine grade Castex-4 is a Class 1 Division 1 luminaire ideal for areas where moisture, dirt, dust, corrosion and vibration would be present. This fixture has an IP66 rating for areas where wind, salt water, or high ambient temperatures can be expected. The Castex-4 is rated for Class I, Division 1, Groups C, D Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups F, G and Class III.

The Castex-4 is available in a variety of mounting options including pendant mount as standard, adjustable wall or ceiling mount bracket and pole mount are available as options.

The copper-free aluminum housing has a separate driver enclosure that is designed for superior thermal management. The Castex-4 comes standard in a grey electrostatic powder coating. All external fasteners are made from stainless steel. The clear impact-resistant tempered glass lens has a 120° beam angle and is available in an optional diffuse finish. Optional 25° and 60° beam angles are also available.

With an operating temperature of -40°C to 60°C, the Castex-4 is ideal for pulp and paper, wastewater treatment plants, shipyards, chemical processing facilities, petrochemical and grain elevators.
