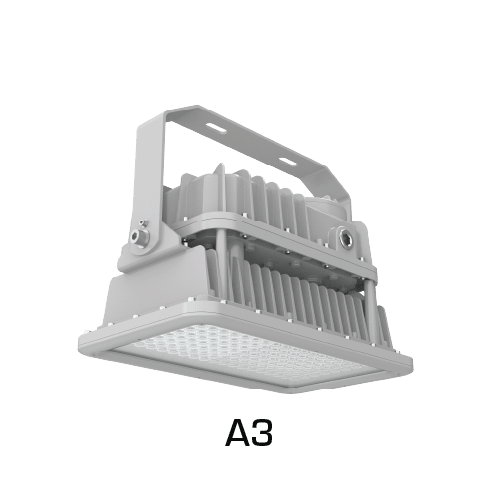

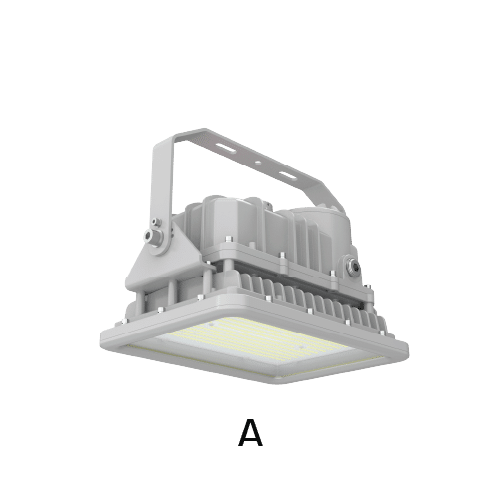

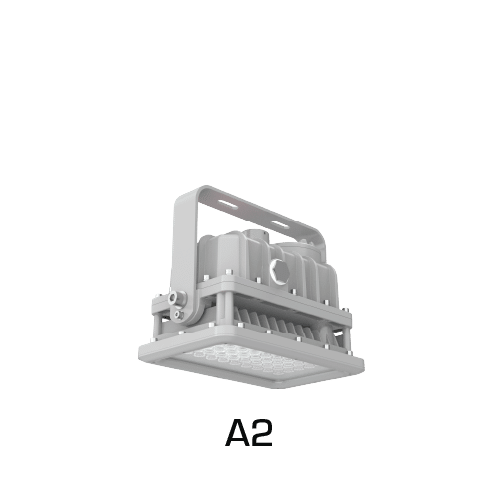

HAZ-X A

Hazardous Location LED Flood Light

The HAZ-X A Series LED Flood Light is UL 844 certified for Class I, Division 2, Groups A, B, C, and D, and is designed for reliable operation in hazardous environments.

Available in configurations from 20W to 400W, the HAZ-X A delivers 2,800 to 58,000 lumens with efficacy up to 150 lm/W. The fixture features field-selectable wattages and CCT (4000K / 5000K / 6500K), 0-10V dimming, and supports 120-277V, 120-347V, or 277-480V input voltages, with optional emergency battery backup.

For enhanced efficiency, the Haz-X A Series is compatible with the optional Haz-X IN02-A-A explosion-proof microwave occupancy sensor. Using 5.8 GHz detection, it provides automatic ON/OFF control and 1–10V dimming, with adjustable settings for occupancy and daylight response. Its IP66 rating and Class I, Division 2 certification ensure dependable performance in hazardous environments.
